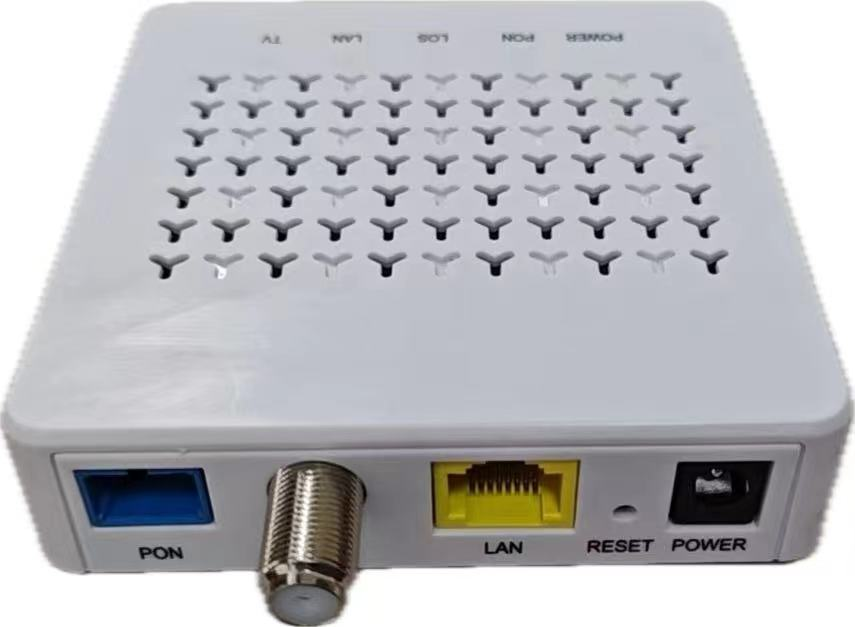

SDT8301S
Standard single-user fiber-coax endpoint
G/EPON 2.5G | 1×T1 coax + 1×GbE LAN | remote coax powering > 100 m | ~86-panel size
Products & Solutions
Twelve networking devices cover both "fiber-to-the-home is difficult" and "fiber-to-the-home" scenarios, all built on the IEEE 802.3 T1 standard and adapted to existing coaxial cabling. On the home side, a matrix of AI smart terminals.
Fiber reaches only the building; gigabit is extended indoors over existing coax.

Standard single-user fiber-coax endpoint
G/EPON 2.5G | 1×T1 coax + 1×GbE LAN | remote coax powering > 100 m | ~86-panel size

Enhanced single-user fiber-coax endpoint
Same base as SDT8301S | higher configuration with plug-in support

Multi-user fiber-coax endpoint
Dual optical ports (PON + 10G IPVB) | 4×T1 coax + 1×LAN downstream | 4-way simultaneous powering | up to 4 users, low cost per home

Single-port gigabit coax terminal
1×T1 coax + 1×GbE | auto-negotiating | coax powering / powered | works with third-party WiFi routers, lowest entry cost

86-panel single-port gigabit coax terminal
Same as MCU8211S | 86-panel form factor (in-wall)

Gigabit coax satellite gateway
75Ω RF uplink | 4×LAN + USB + AX3000 dual-band WiFi 6 | coax powering > 100 m | reverse powering

Single-coax switching terminal
1×T1 coax + 2×LAN | auto-negotiating | VLAN support

Dual-coax switching terminal
2×T1 coax + 2×LAN

Quad-coax switching terminal
4×T1 coax + 2×LAN
For FTTH with 10G access, building the new whole-home WiFi network: main gateway + satellite gateways.

Dual-IP-channel fiber-coax main gateway
Dual optical ports (GPON/XGS-PON + 10G IPVB) | 2×T1 coax + 2.5G/1G LAN + voice + AX3000 | coax powering > 100 m | seamless whole-home roaming

Panel-type coax satellite gateway
Same as SGW8222 | 86-panel form factor (in-room)
Pick by three questions - how many coax ports, how many Ethernet ports, and whether WiFi is needed. All models share the same IEEE 802.3 T1 coax foundation.
| Model | Group / role | Coax (T1) | Ethernet | WiFi | Powering |
|---|---|---|---|---|---|
| SDT8301S | Group A · endpoint (single user) | 1×T1 | 1×GbE LAN | - | Remote coax powering > 100 m |
| SDT8301E | Group A · endpoint (single user, enhanced) | 1×T1 | 1×GbE LAN | - | Same as SDT8301S, higher config with plug-ins |
| MDT8304 | Group A · endpoint (multi-user) | 4×T1 (downlink) | 1×LAN | - | 4-way coax powering, up to 4 homes |
| MCU8211S | Group A · in-home terminal | 1×T1 | 1×GbE | - | Coax powering / powered, can back-feed MDT |

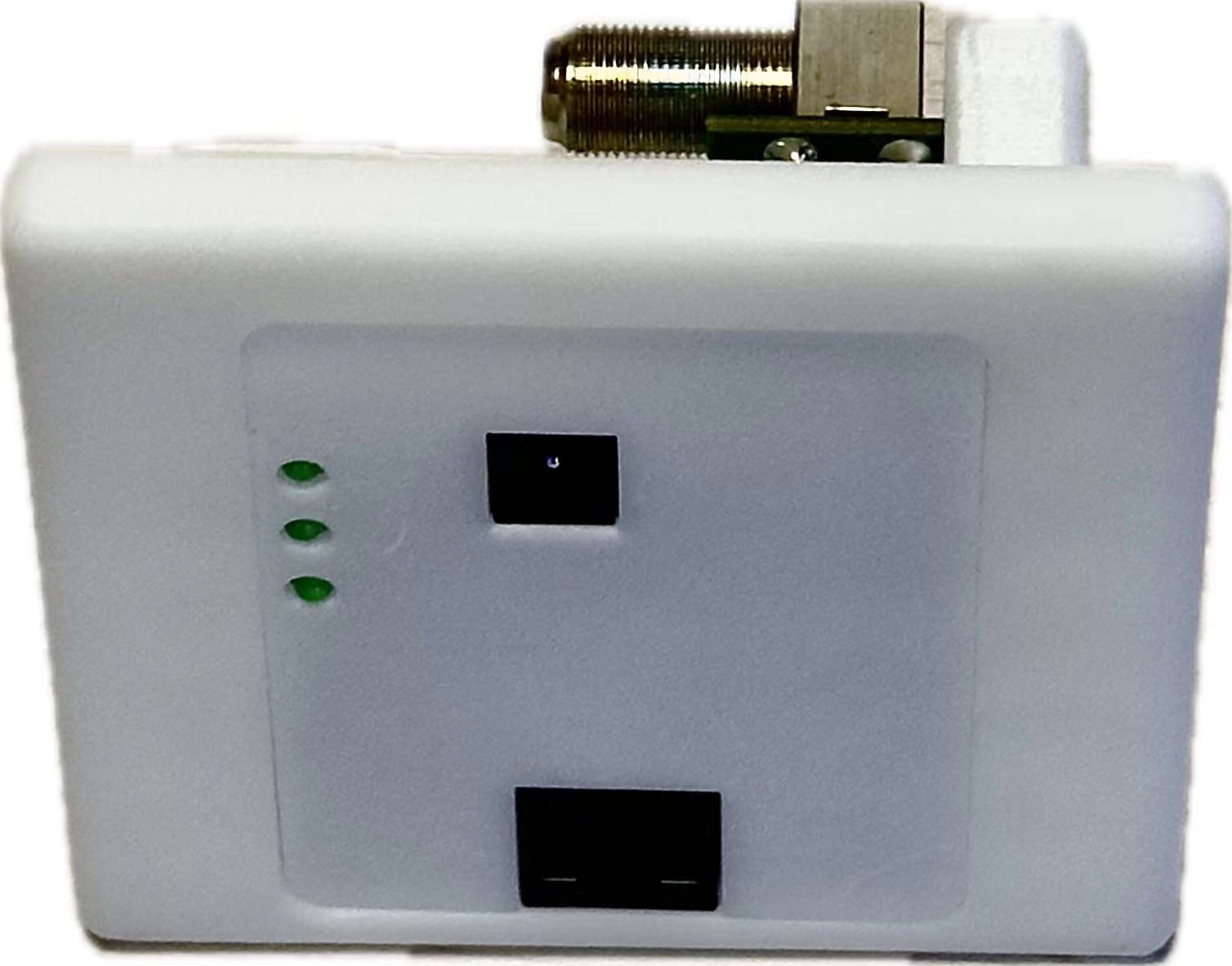

| MCU8212 | Group A · in-home terminal (86 panel) | 1×T1 | 1×GbE | - | Same as MCU8211S |
| SGW8222 | Group A / B · satellite gateway | 75Ω RF uplink | 4×LAN + USB | AX3000 dual-band WiFi 6 | Coax powering > 100 m, reverse powering |
| SGW8221 | Group B · satellite gateway (86 panel) | 75Ω RF uplink | 4×LAN + USB | AX3000 dual-band WiFi 6 | Same as SGW8222 |
| MCU8213 | Group A · switching terminal | 1×T1 | 2×LAN | - | VLAN support |

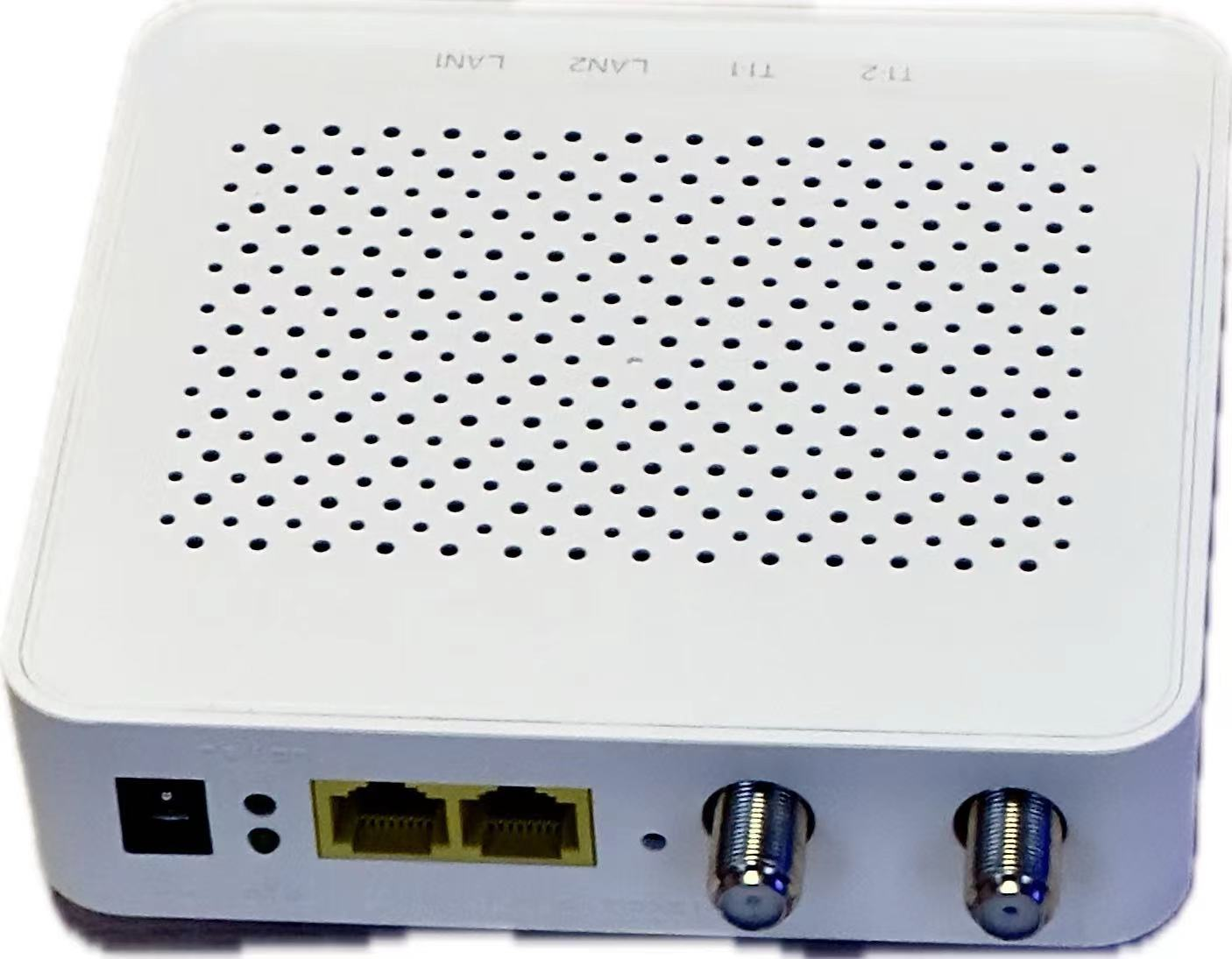

| MCU8214 | Group A · switching terminal | 2×T1 | 2×LAN | - | - |

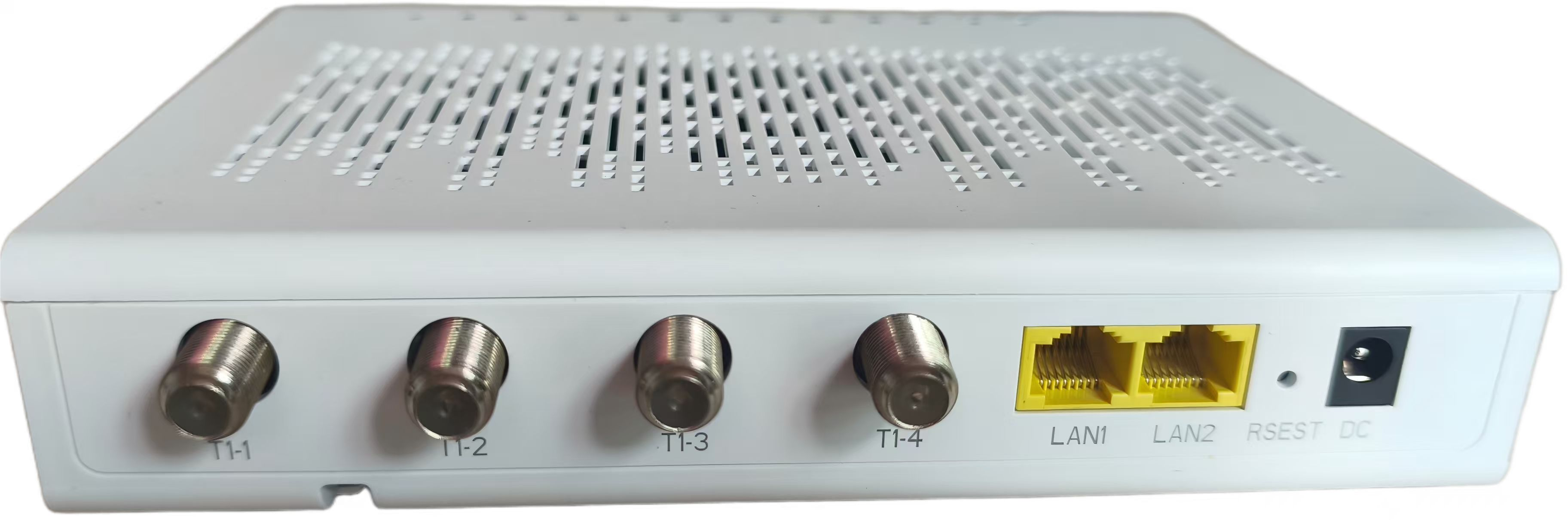

| MCU8216 | Group A · switching terminal | 4×T1 | 2×LAN | - | - |
| MGW7244 | Group B · main gateway | 2×T1 | 2.5G/1G LAN + voice RJ11 | AX3000 dual-band WiFi 6 | Coax powering > 100 m |
Three tiers from mainstream to flagship: the same AI capability in different form factors and compute classes.
50 TOPS on-device compute, fully local inference, privacy stays in the home; multiple models resident with zero switching.
86-panel form factor with round-screen voice interaction, for hotels and bedrooms.
Pad form factor, covering both mobile and fixed usage in the home.
Operators, MSOs, distributors and ecosystem partners are welcome to reach out.
